EMAG 450-5MT | 5-Axis Vertical Turning & Milling Center | April 16
This email was sent
2025-04-14T18:01:19.268+00:00
Download this Email
Mark this Email
Featuring an Unused, 24" EMAG VMC 450-5 MT manufactured in 2021
View in browser
My BidSpotter
My Watch List
Alerts
EMAG 450-5MT | 5-Axis Vertical Turning & Milling Center
View catalog
DATE
Lots begin closing
April 16, 11:00 AM CT
LOCATION
Houston, TX
AUCTION FORMAT
Timed

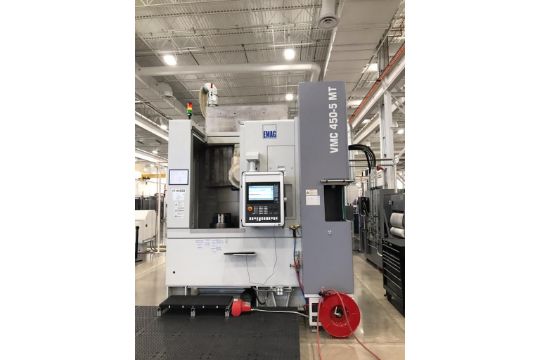

Featuring an Unused, 24″ EMAG VMC 450-5 MT manufactured in 2021. Full specs available in the catalog.
SPECS:
Chuck Dia.: 24″
Capacity: 1100 pounds
Max Swing Diameter: 31″
Turning Diameter: 23.5″
X-Axis Travel (Upper/Lower): 30″
Z-Axis Travel (Upper/Lower): 19″
Drive Power: 100 HP (full power at 800 RPM)
Max Spindle Speed (RPM): 2000 RPM
Z-Axis Rapid Traverse Rate: 60/30 M/Min.
Feed Force X / Z: 4 / 15 kN
Ball Screw Diameter X / Z: 40 / 50 MM
Milling Spindle Motor: 100 HP
Max Milling Spindle Speed (RPM): 7000 RPM
Milling Spindle Taper: CAPTO C8
Tool Changer Capacity: 60
MAIN DRIVE:
POWER: 100 HP
FULL POWER AT 800 RPM
MAX SPINDLE RPM: 2,000
C AXIS POSITIONIONG TO .01MM ANGULAR DEGREES
FEED DRIVE:
RAPIDS Z / Z: 60 / 30 M / MIN.
FEED FORCE X / Z 4 / 15 kN
BALL SCREW DIAMETER X / Z: 40 / 50 MM
MILLING SPINDLE:
POWER: 100 HP
MAX SPINDLE SPEED: 7000 RPM
SPINDLE TAPER: CAPTO C8
TOOL MAGAZINE: 60
EQUIPPED WITH:
MINERALIT MACHINE BED
SIEMENS 840 Dsl
FULL ENCLOSURE
LEVEL PADS
TURN MILL DRIVE
EMAG WORKPIECE CORRECTION SYSTEM
EMAG OPERATING AND SETTINGS MASKS
EMAG REMOTE DIAGNOSIS
Y AXIS
B AXIS +/- 95 DEGREE
1000 PSI COOLANT THROUGH TOOL
X-AXI CLAMPING FOR GEAR TOOTH FORMING
SWARF CONVEYOR, CHAIN TYPE - REAR DISCHARGE
LIFTING PUMP
PAPER FILTER
LOW PRESSURE COOLANT
HIGHT PRESSURE COOLANT 1000 PSI
PROGRAMMABLE COOLANT PRESSURE
COOLANT MIST EXTRACTOR
AIR BLAST
CHIP FLUSH
QUALITY CONTROL:
WIRELESS GAUGING
CALIBRATION BLK FOR PROBE
TOOL GAUGING - BLUM LASER
